氣動對夾式尼龍蝶閥

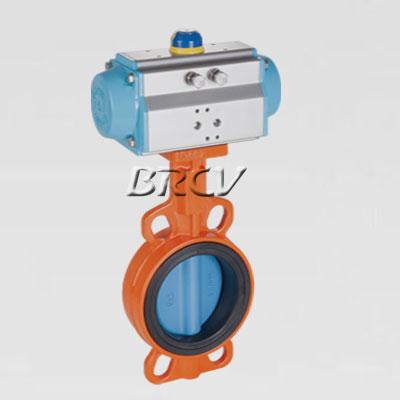

圖片展示
產品描述
產品型號：
產品特點：強度高，過流面積大，流阻小
詳細介紹
|
|
氣動蝶閥是以壓縮空氣為動力（正常情況下供氣壓力為0.4~0.6MPa），通過活塞齒條與齒輪的機械傳動，
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
來帶動閥軸和閥板0-90°的旋轉即閥門開啟關閉。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
采用新型系列GT型氣動執行器，有雙作用式和單作用式（彈簧復位），齒輪傳動，安全可靠；
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
大口徑閥門采用系列AW型氣動執行器拔叉式傳動，結構合理，輸出扭矩大，有雙作用式和單作用式
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1、氣動蝶閥齒輪式雙活塞，輸出力矩大，體積小。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2、氣缸選用鋁金材料，重量輕、外形美觀。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3、可在頂部、底部安裝手動操作機構。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4、齒條式連接可調節開啟角度、額定流量。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5、蝶閥執行器可選帶電訊號反饋指示及各類附件以實現自動化操作。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6、IS05211標準連接為產品的安裝更換提供了方便。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7、中間的調節螺釘可使標準產品在0°和90°有±4°的可調范圍。確保與閥門的同步精度。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
主要附件：
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(氣動蝶閥的附件主要有：電磁閥，定位器、增壓閥、保位閥、減壓閥、過濾器、油霧器、位置反饋器、離合式手操機構。
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

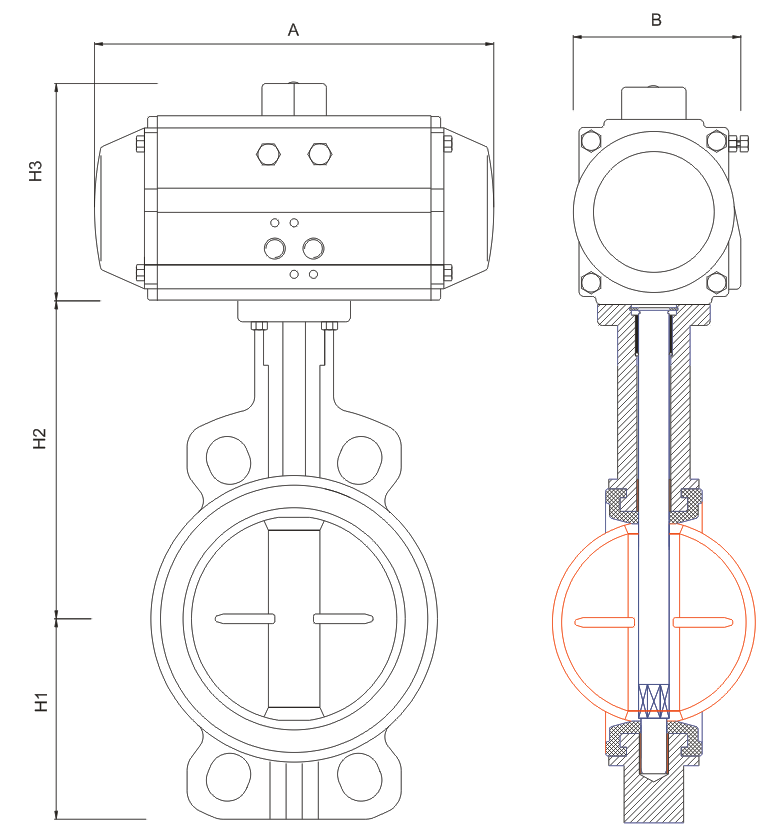

規格型號
|
H1
|
H2
|
H3
|
A
|
B
|
|
DN50
|
65
|
143
|
102
|
153
|
81
|
|
DN65
|
71
|
155
|
102
|
153
|
81
|
|
DN80
|
77
|
162
|
118
|
203
|
92
|
|
DN100
|
107
|
181
|
134
|
238
|
105
|
|
DN125
|
122
|
197
|
148
|
258
|
119
|
|
DN150
|
150
|
210
|
148
|
258
|
119
|
|
DN200
|
165
|
240
|
168
|
332
|
148
|
|
DN250
|
201
|
286
|
205
|
395
|
167
|
|
DN300
|
234
|
309
|
225
|
425
|
182
|
|
DN350
|
302
|
309
|
242
|
528
|
220
|
|
DN400
|
335
|
361
|
280
|
616
|
262
|
|
DN450
|
363
|
393
|
378
|
728
|
330
|
|
DN500
|
398
|
427
|
378
|
728
|
330
|
|
DN600
|
457
|
492
|
462
|
876
|
406
|
|
